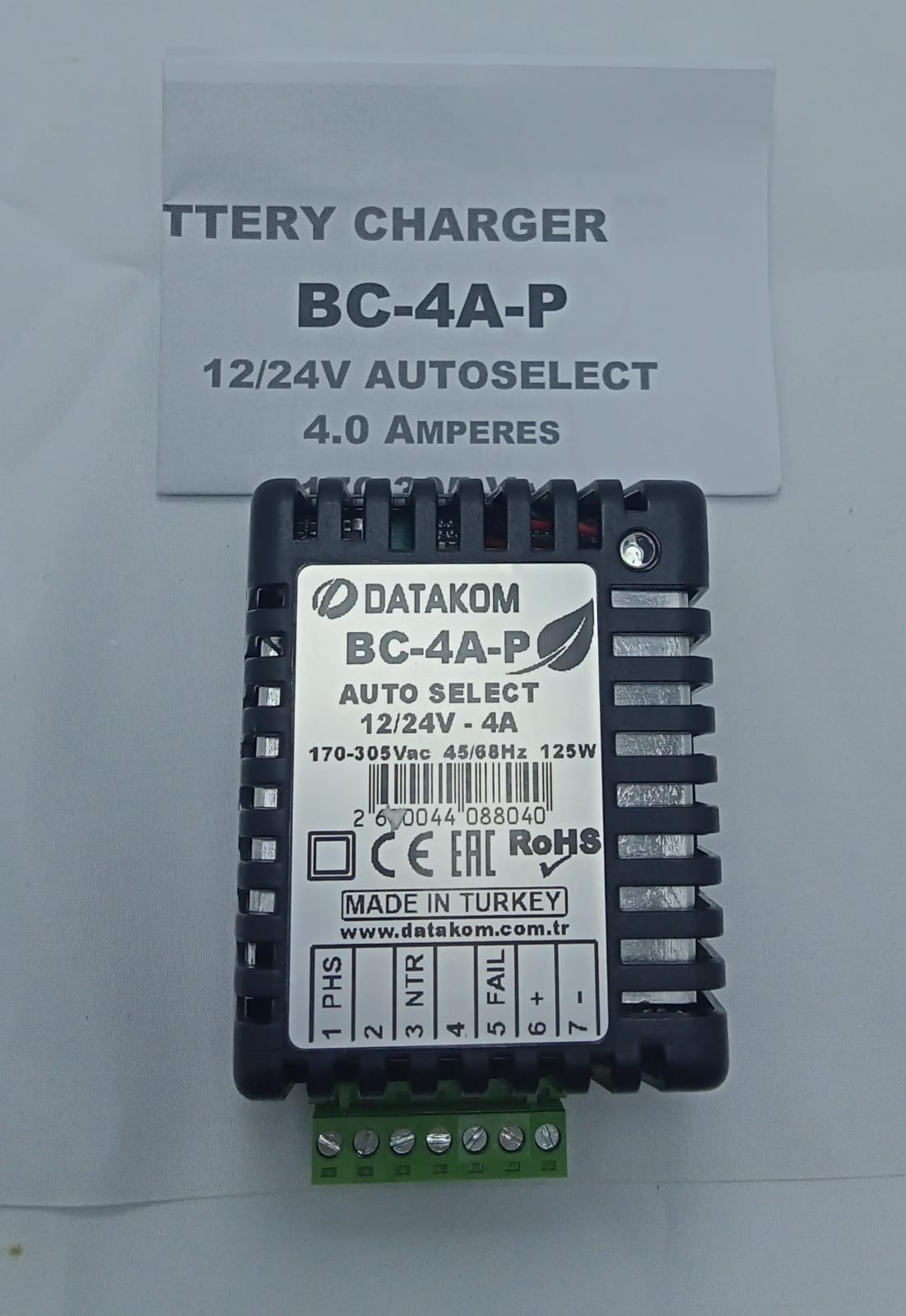

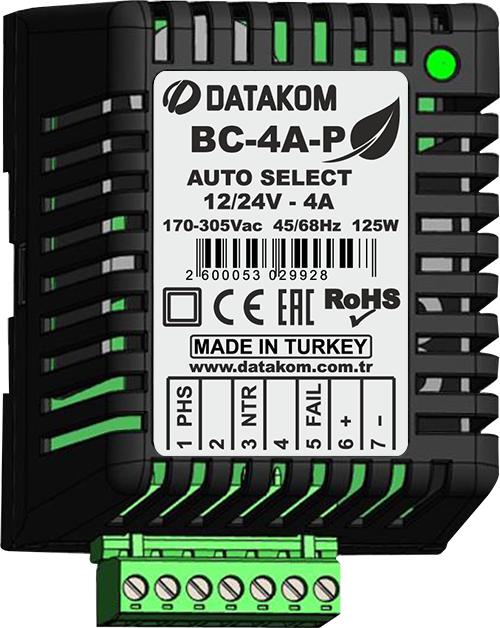

Battery charger Datakom BC-4AP (new model) Auto select 12V/24V - 4A

Technical Specification :

Technology: Switchmode, flyback 65 kHz
Output voltage (Vo): autoselect, 13.50 or 27.00 VDC
Output current (Io): 4.0 ADC (continuous)
Input voltage range: 170-300 VAC (220-277V nominal)
Input current: 1.7 ARMS max. (@170 VAC)
Input frequency range: 45-68 Hz
Cooling: natural convection
Maximum input power: < 125 Watts
Peak Efficiency: > 92% (230VAC, 24VDC)
Output power: 108 Watts max continuous,
No load power: < 0.3W @ 230VAC/24VDC
< 0.15W @ 230VAC/12VDC
Output ripple: < 0.5% of Vo (peak-to-peak)
Output noise: < 40mV RMS
Load regulation: < 0.5% of Vo
Line regulation: < 0.01% of Vo
Warm-up voltage: < 0.5% of Vo
Overshoot: < 3% of Vo (@100% to 0% load change)
Current consumption from battery: < 10mA
