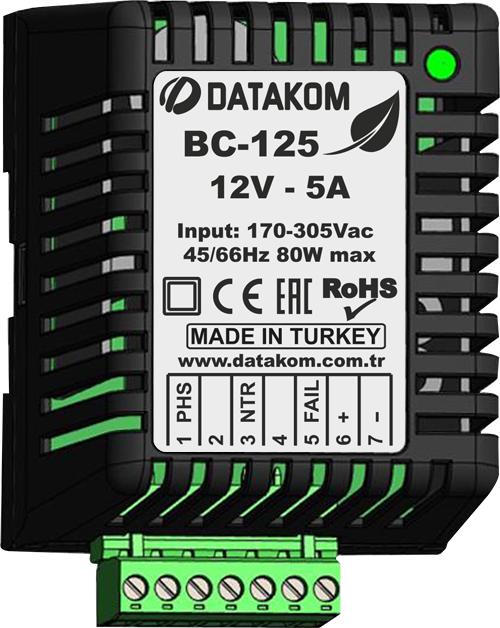

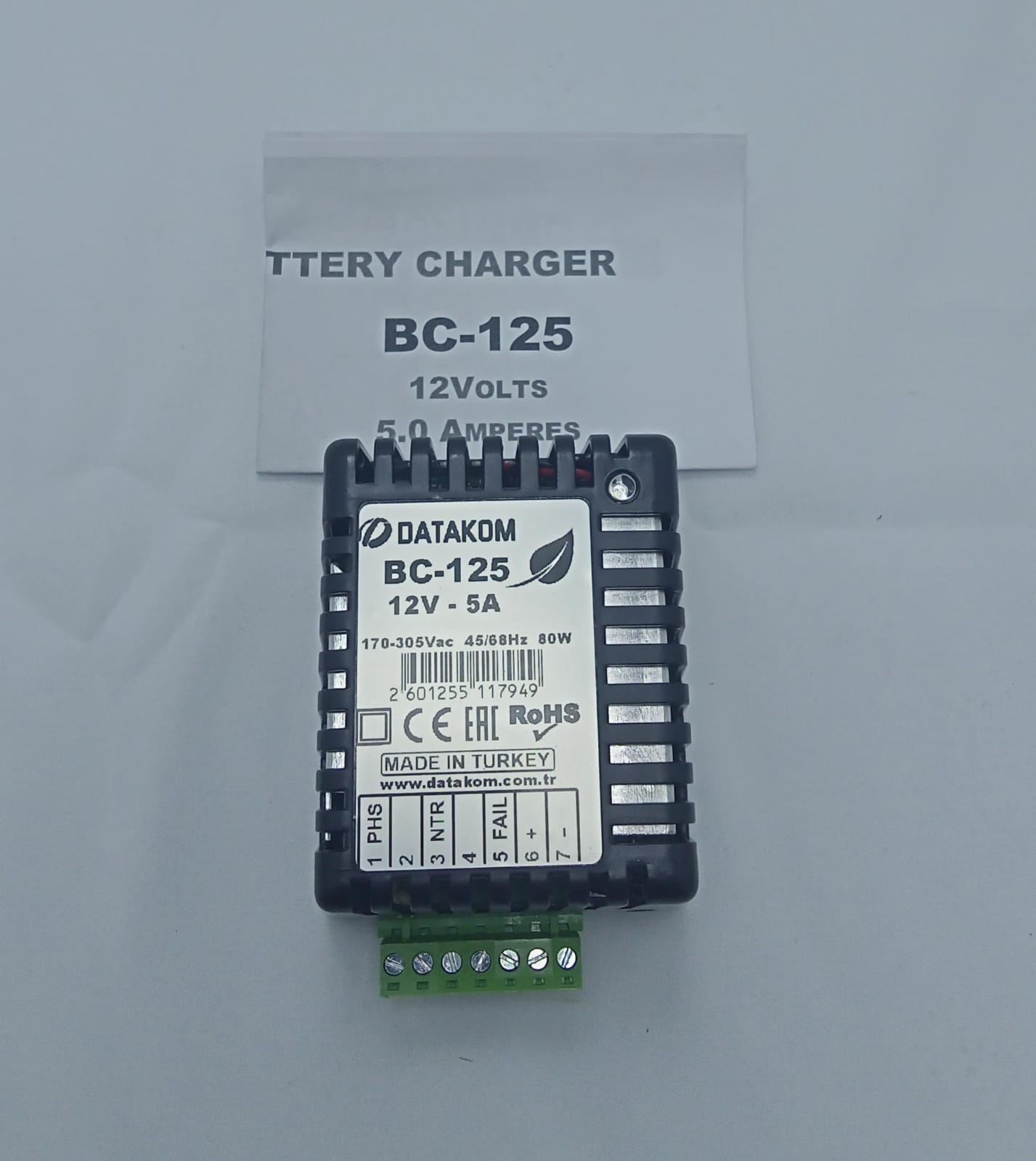

Battery charger Datakom BC-125 (new model) 12V - 5A

Technical Specification :

Technology: Switchmode, flyback 65 kHz
Output voltage (Vo): 13.50 VDC
Output current (Io): 5.0 ADC (continuous)
Input voltage range: 170-300 VAC (220-277V nominal)
Input current: 1.1 ARMS max. (@170 VAC)
Input frequency range: 45-68 Hz
Cooling: natural convection
Maximum input power: < 80 Watts
Peak Efficiency: > 90.2% (230VAC)
Output power: 67 Watts max continuous,
No load power: < 0.15W @ 230VAC
Output ripple: < 0.5% of Vo (peak-to-peak)
Output noise: < 40mV RMS
Load regulation: < 0.5% of Vo
Line regulation: < 0.01% of Vo
Warm-up voltage: < 0.5% of Vo
Current consumption from battery: < 5mA
Overshoot: < 3% of Vo (@100% to 0% load change)
Overload protection: limits output current to 5A
Short cir
